Dynomax Race Bullet 24245 Exhaust Resonator
DynoMax® Race Bullet mufflers feature 100-percent welded construction for lifelong durability. The 'Pure Unadulterated POWER' and lightweight, compact design make it the ultimate race muffler. The unrestricted, straight-through design is dyno tested and track proven. Each muffler uses our exclusive Contin uous Roving Fiberglass (CRF) Technology which helps provide up to a 4 dbA sound reduction, on most race applications, while maintaining a deep race tone.
  • Designed for vehicles with limited space
  • Light weight compact design
  • 100% welded design for maximum durability
  • CRF Technology which helps provide up to a 4 dbA sound reduction, on most race applications, while maintaining a deep race tone

Application Summary:

Year Make/Model

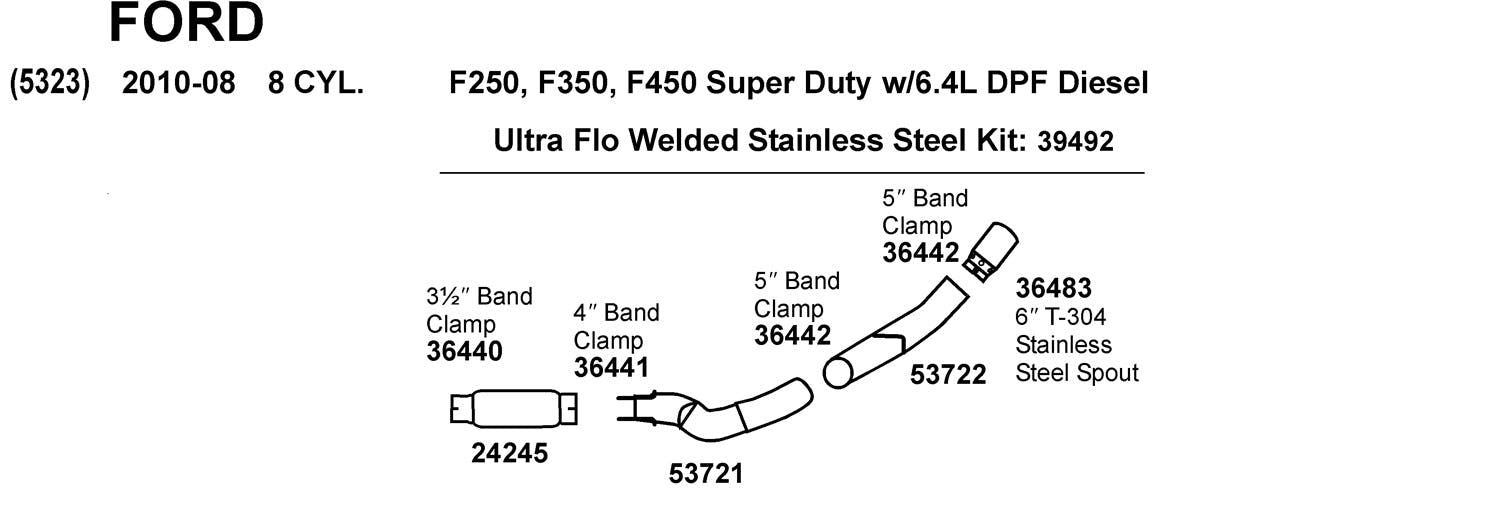

2008-2010 Ford F-250 Super Duty
2008-2010 Ford F-350 Super Duty
2008-2010 Ford F-450 Super Duty
Attributes
Body 1 Height 5
Body 1 Length 12
Body 1 Shape Round
Body 1 Width 5
Body Height 5.000 in., 5
Body Height (in.) 5
Body Length 12.000 in., 12
Body Length (in.) 12
Body Material Stainless Steel
Body Shape Round
Body Width 5.000 in., 5
Body Width (in.) 5
California Proposition 65 No
Class PW
Country of Origin (Primary) US
Emission Code Legal US
Finish Aluminized, Aluminized
Fitment Universal
Flow Director Yes
Harmonized Tariff Code (Schedule B) 8708925000
Hazardous Material Code N
Inlet Configuration Center
Inlet Connection Type Pipe
Inlet Diameter 3.500 in.
Inlet Diameter Designation Inside Diameter
Inlet Inside Diameter 3.500 in., 3.5
Inlet Inside Diameter (in.) 3.5
Inlet Position Center
Inlet Quantity 1, 1
Inlet Size (in.) 3.5
Inlet Type Single Center, Pipe Connection
Life Cycle Status Code Available to Order
Main Piping Diameter 3.500 in.
Main Piping Diameter (in.) 3.5
Material Steel
Max Airflow Dual 2000, 2000
Max Airflow Dual (in.) 2000.000
Max Airflow Single 1000, 1000
Max Airflow Single (in.) 1000.000
Max Year Covered 2010
Min Year Covered 2008
Most Popular Make/Model Ford F-250 Super Duty
Most Popular Year 2008
Muffler Count 1
NAFTA Preference Criterion Code B
Outlet Configuration Center, Center
Outlet Connection Type Pipe
Outlet Diameter 4.000 in.
Outlet Diameter Designation Inside Diameter
Outlet Inside Diameter 4
Outlet Outside Diameter 3.5, 4
Outlet Outside Diameter (in.) 3.5
Outlet Position Center
Outlet Quantity 1, 1
Outlet Size (in.) 3.5
Outlet Type Single Center Outlet, Pipe Connection
Overall Length 17.250 in.
Overall Length (in.) 17.250 in.
Position N/A
Product Grade Premium
Resonator Shape Round
SDR Required Flag N
Shape Round
Total Part VIO 312885
Universal Or Specific Fit Universal
GTIN 00086387242455
